Strip-out
Roof opened up
Tiles and old materials removed in sections so the roof beneath could be seen and worked on.
Shield Roofing case study
Tile Re-Roof & Dry Ridge Plymouth
A recent Shield Roofing job showing the roof stripped back, new breathable membrane and battens fitted, the existing tiles reinstated and the ridge mechanically fixed.
THE JOB
Old roof stripped and rebuilt in stages
Once the tiles were lifted, the old underlay and battens could be removed and the roof structure checked. The photos below show the work while it was open — before the new roof covering hid the membrane, battens and timber again.
- Existing tiles lifted and stacked for re-use where suitable
- Old underlay and battens stripped
- Exposed roof structure checked during the strip
- New breathable membrane fitted
- New treated battens installed
- Tiles reinstated and roof edges made good
- Mechanically fixed dry ridge system installed
Before the new membrane went down
The roof had to be opened up first. This is the part of a re-roof customers normally never see once the tiles are back on.

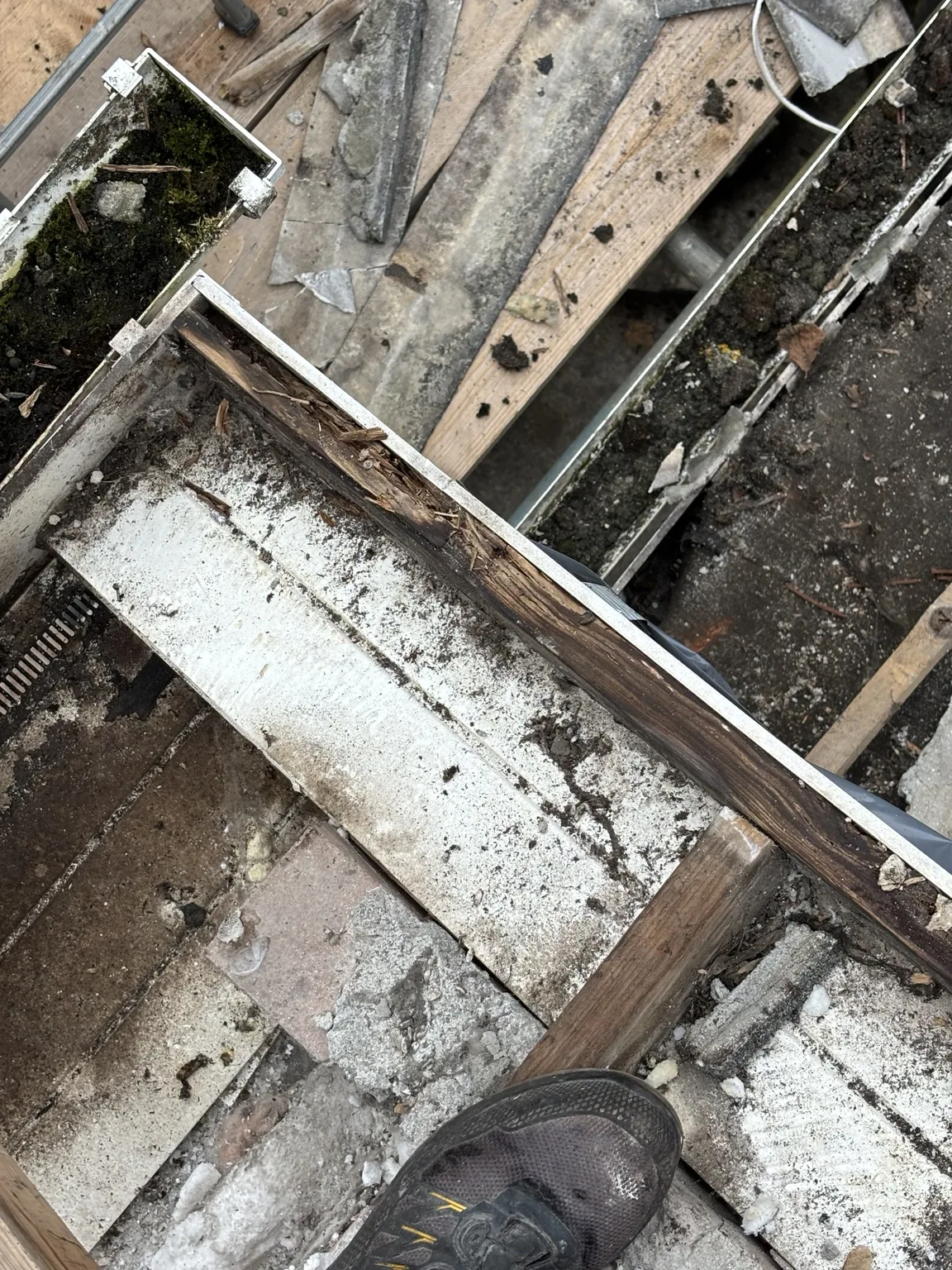

Exposed structure
What was underneath
Opening the roof makes it possible to check the areas that cannot be inspected properly with the covering still in place.
New membrane and battens
After the strip-out, new breathable membrane and treated battens were fitted before the tiles were reinstated.
Membrane
Weatherproof layer
New breathable membrane being installed across the roof.
Battens
Battened roof
Treated battens installed ready for the tiles to go back on.

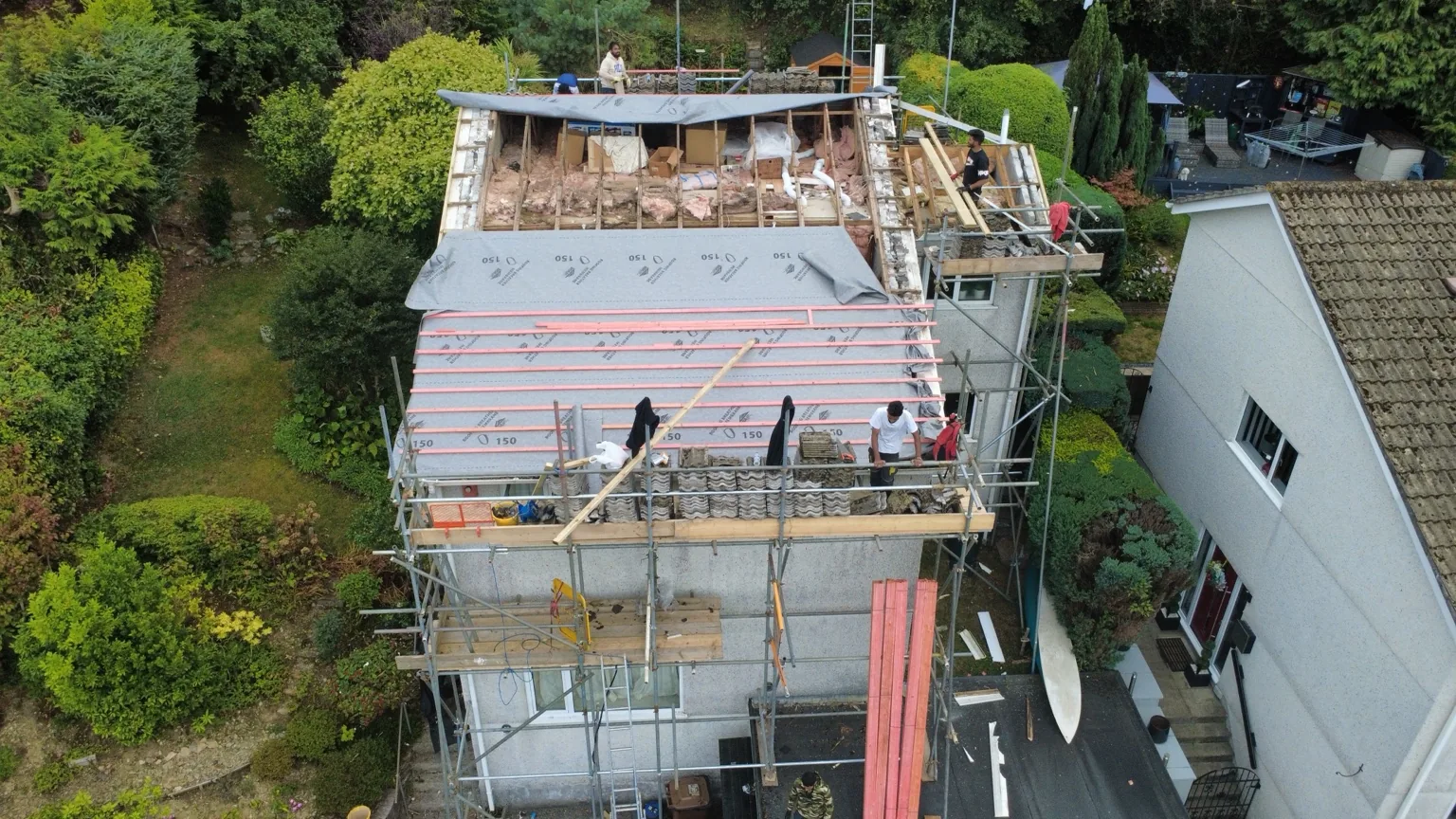

Drone view
Work in progress
Aerial view showing the new membrane and battens across the main roof.

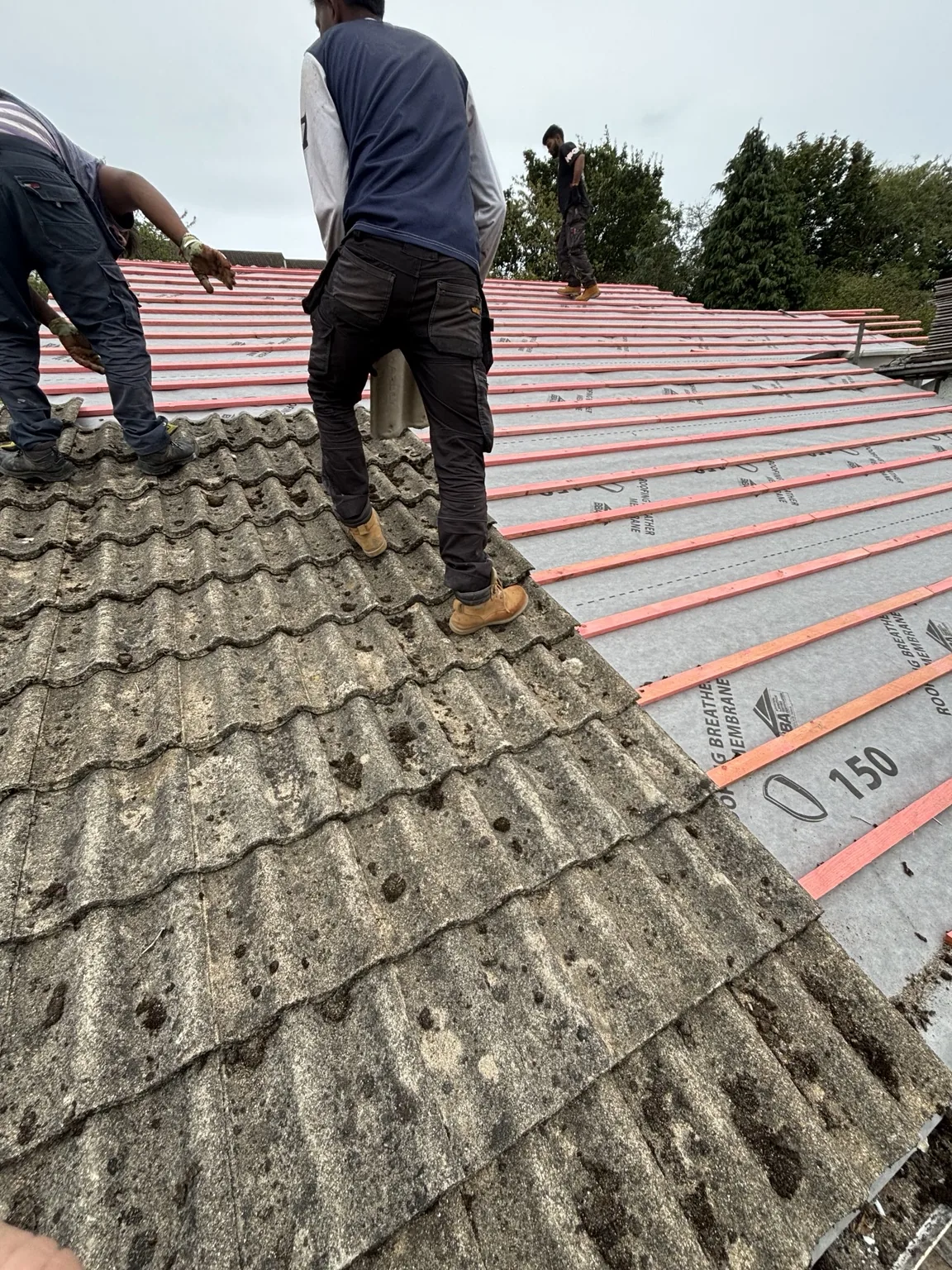

Tiles going back
Reinstatement
Existing tiles being reinstated over the renewed roof build-up.
FINISHED DETAIL
Dry ridge and roofline finished
The final stage included the ridge and roof edges. The ridge tiles were mechanically secured as a dry ridge system rather than relying on mortar alone.
The result is still visibly the customer's existing tiled roof, but the weatherproofing and battens underneath have been renewed.
Mechanically fixed ridgeVentilated dry-ridge rollExisting tiles retained where suitableNew membrane & battens underneath
Dry ridge detail
Ridge tiles fixed mechanically with the dry-ridge system visible beneath.

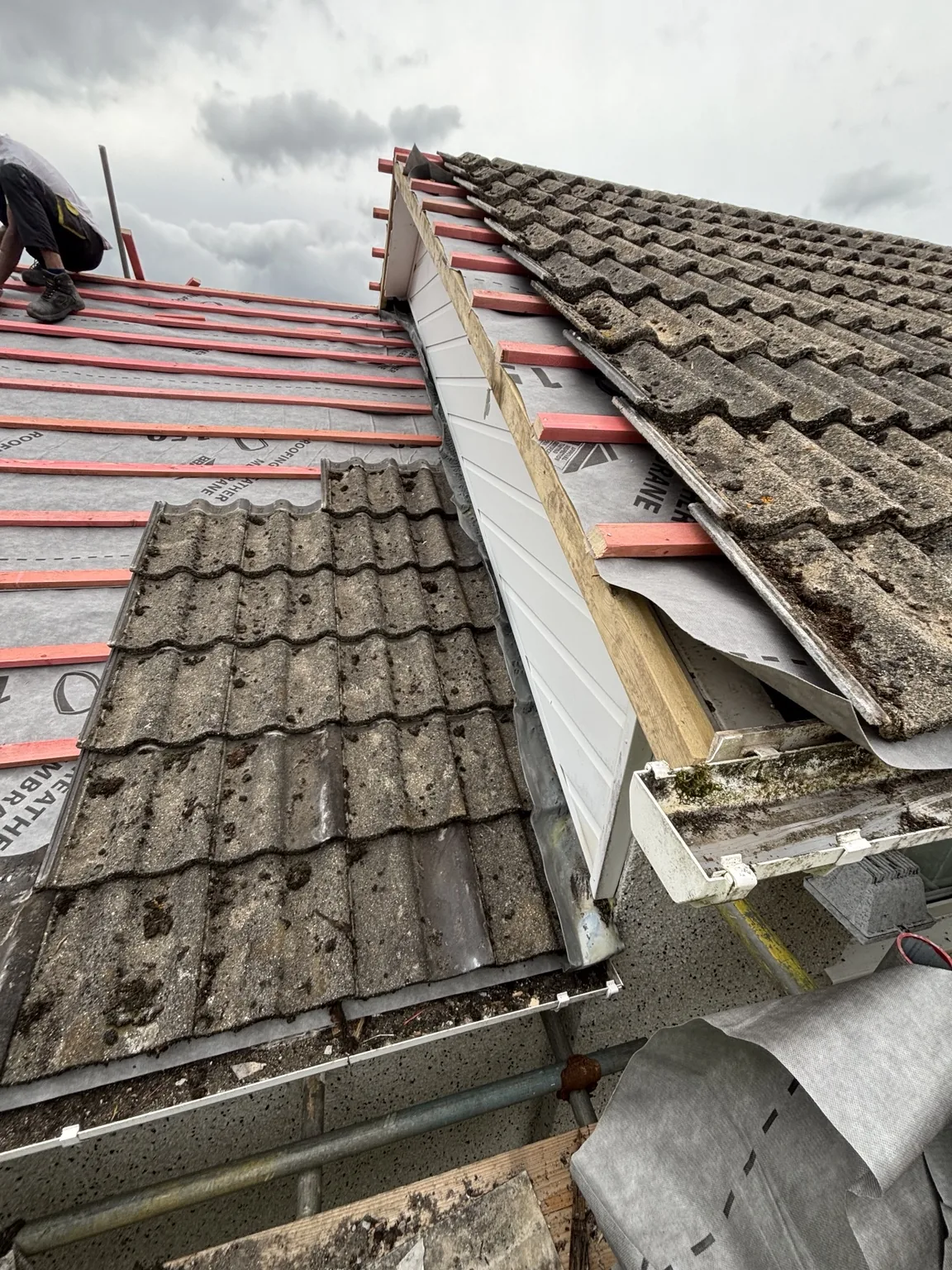

Roofline detail
Membrane, battens and tile junctions being finished around the adjoining roof sections.
Thinking about a re-roof?
If you are getting repeated leaks, the underlay has failed or the roof has reached the point where patch repairs no longer make sense, send us a few photos and your postcode.
We can look at anything from one problem section to a complete re-roof.
